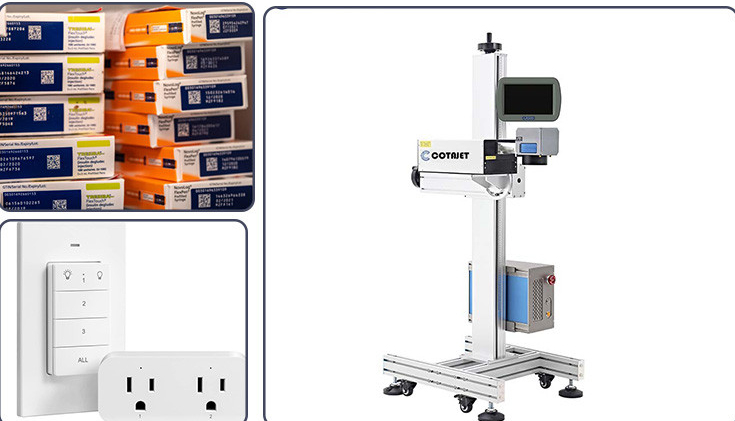

CL600A 5W Flying UV Laser Marking Machine Visible Traceability
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 3W/5W/10W | Marking Speed | ≤12000mm/s |
|---|---|---|---|
| Controller | 10.2 Inch Touch Controller | Marking Range | 110X110mm(Standard) Optional:200X100mm,500X500mm |
| Power Supply | 220V/50HZ | Power Consumption | 400W |
| Highlight | Traceability Flying UV Laser Marking Machine,Visible 5W Flying UV Laser Marking Machine,CL600A Flying UV Laser Marking Machine |
||
Product Description
CL600A 5W Flying UV Laser Marking Machine Visible Traceability
Product Specifications
| Attribute | Value |
|---|---|
| Power | 3W/5W/10W |
| Marking speed | ≤12000mm/s |
| Controller | 10.2 inch touch controller |
| Marking range | 110X110mm (Standard) Optional: 200X100mm, 500X500mm |
| Power Supply | 220V/50HZ |
| Power consumption | 400W |
Product Description
COTAJET UV Laser Marking System for Cosmetics & Personal Care delivers high-speed batch coding and expiration dating on shrink film packaging at rates up to 2000 characters/second, optimizing production throughput while reducing line utilization costs. The UV laser's cold-marking technology minimizes thermal stress on substrates—surpassing CO₂ and fiber lasers—to prevent packaging damage. Produces permanent, high-contrast codes with smooth edges for enhanced traceability and readability.
Key Features
- Anti-Counterfeiting Compliance: Generates crisp, vision-readable 2D codes on white HDPE, LDPE, and synthetic fiber materials to meet pharmaceutical, medical device, and cosmetic industry regulations.
- Material Integrity: Cold-marking process preserves substrate structure while enabling lifetime product tracking.
- Versatile Application: Ideal for expiration dates, batch codes, and traceability markers on cosmetics, personal care, and home care packaging.
Technical Parameters
| Project | UV-3W | UV-5W | UV-10W |
|---|---|---|---|
| Characteristic | All aluminum sandblasting oxidation | ||
| Laser | The service life is more than 20000-30000 hours | ||
| Laser wavelength | 355nm | ||
| Output power | ≥4.2W | ≥6.5W | ≥12W |
| Marking speed | ≤12000mm/s | ||
| Controller | 10.2 inch touch controller | ||
| Cooling system | Water cooling (with chiller) | ||
| Focus lens | 210mm | ||
| Minimum linewidth | 0.01mm | ||
| Repetition accuracy | 0.001mm | ||
| Marking range | 110mm*110mm (optional) | ||
| Positioning mode | Blue light indication | ||
| Number of rows | Any line within the marking range | ||
| Production line speed | 0~130m/min (depending on the material) | ||
| Software | Specification |
|---|---|
| Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc |
| Jurisdiction | Multi user management authority |
| Operating system | Linux system |
| Inkjet mode | Static, analog, encoder |
| Reserved signal | Start, print status, finish, fault |
| Data protection | With power failure data protection energy |
| Monitor | Provide overspeed alarm function |
| De crossing | Automatic removal of intersections |
| Coding software | Single and double machine code sending |
| Support Type | Specification |
|---|---|
| Typeface | Chinese and English, numbers, traditional, etc |
| File format | BMP/DXF/HPGL/JPEG/PLT |
| Bar code | CODE39, CODE128, CODE126, QR |
| Servicing Parameters | Specification |
|---|---|
| Power Supply | 220V/50HZ |
| Power consumption | 800W |
| Net weight of machine | 40kg |
| Overall dimension | 640mmX160mmX206mm |
| Environment requirement | External temperature 0℃－45℃; humidity ≤95% |
