CSM-770PLUS Continuous Band Sealer Retail Packaging Industrial Parts
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | 220V/50Hz | Sealing Width | 15mm |
|---|---|---|---|
| Model | CSM-770PLUS | Max Loading Weight | 5kg |
| Sealing Material | PP, PE, PET, Aluminum Foil, Paper | Power Consumption | 500W |
| Conveyor Belt Length | 1000mm | Machine Weight | 16kg |
| Conveyor Belt Width | 150mm | Sealing Speed | 0-12m/min |
| Sealing Method | Continuous | Sealing Temperature | 0-300℃ |
| Application | Suitable For Sealing Plastic Bags, Aluminum Foil Bags, Paper Bags, Etc. | ||
| Highlight | Industrial Parts Continuous Band Sealer,Retail Packaging Continuous Band Sealer,CSM-770PLUS Continuous Band Sealer |
||
Product Description

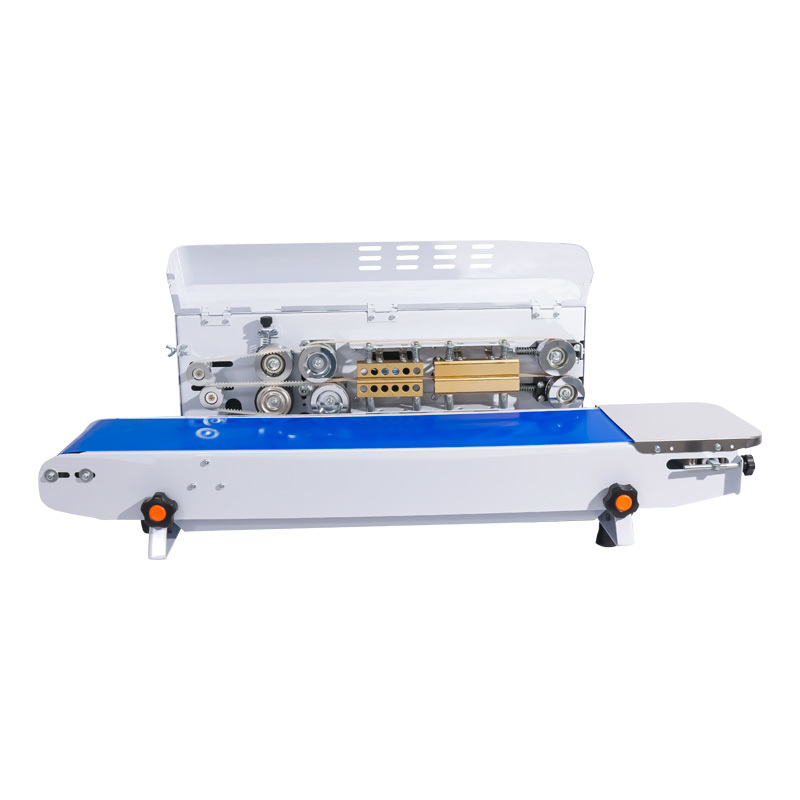

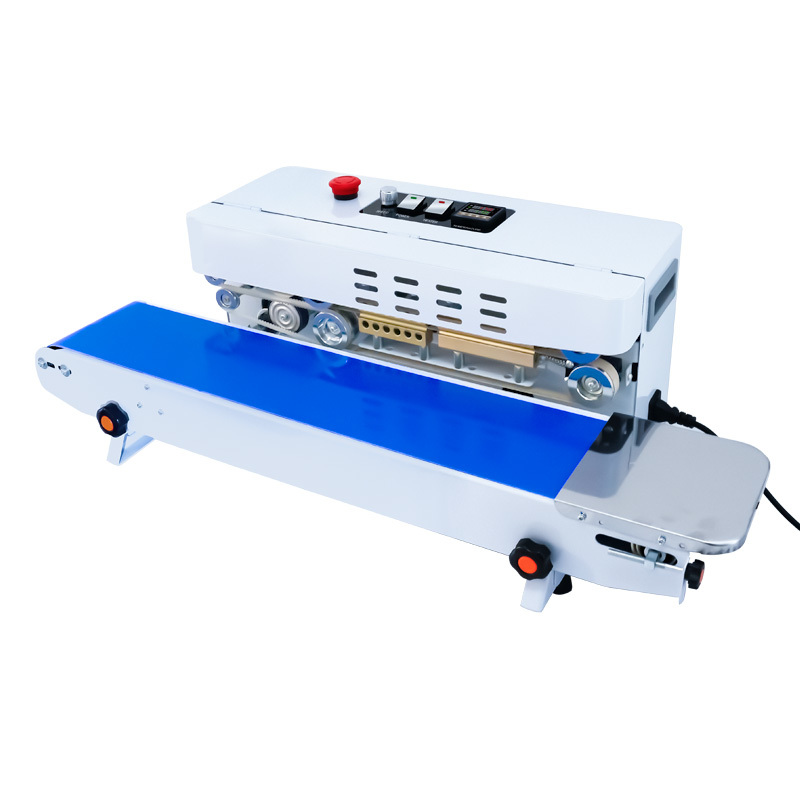

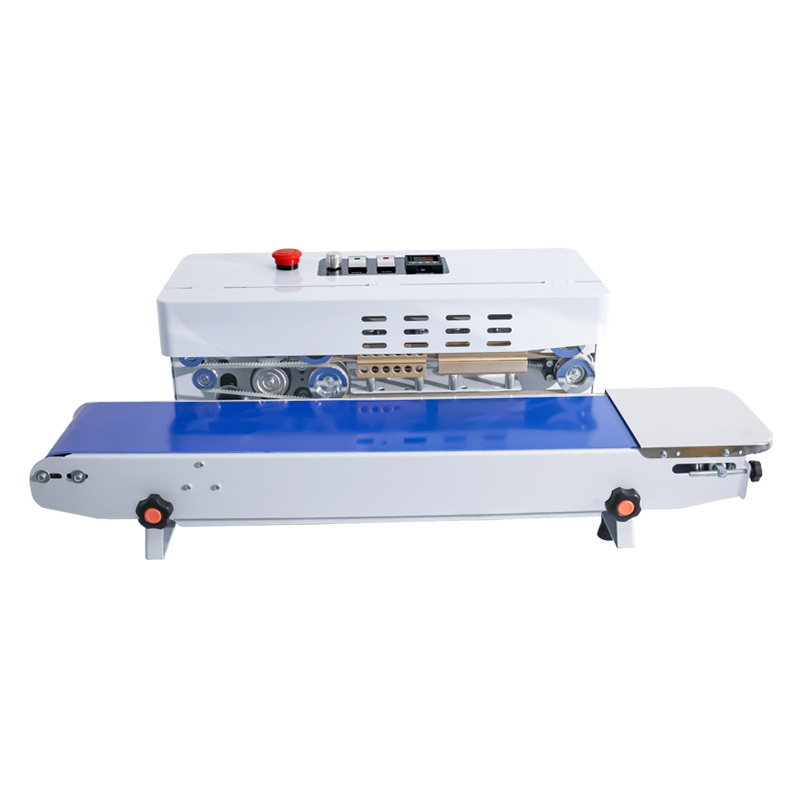

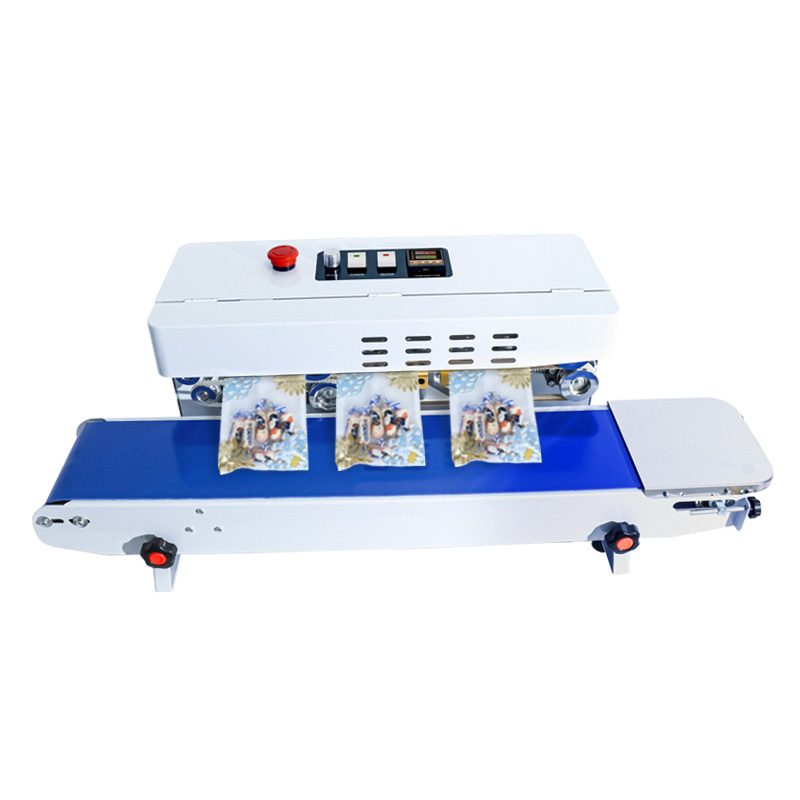

CSM-770PLUS Continuous Band Sealer for Retail Packaging & Industrial Parts
Product Overview
The CSM-770PLUS continuous band sealer is a high-performance industrial sealing machine designed for high-volume production environments. This versatile sealer efficiently handles thousands of products daily with precision and reliability.
Key Specifications
| Attribute | Value |
|---|---|
| Power Supply | 220V/50Hz |
| Sealing Width | 15mm |
| Model | CSM-770PLUS |
| Max Loading Weight | 5kg |
| Sealing Material | PP, PE, PET, Aluminum Foil, Paper |
| Power Consumption | 500W |
| Conveyor Belt Length | 1000mm |
| Machine Weight | 16kg |
| Conveyor Belt Width | 150mm |
| Sealing Speed | 0-12m/min |
| Sealing Method | Continuous |
| Sealing Temperature | 0-300℃ |
Advanced Features
- Adjustable conveyor speed, cooling fan, and seal temperature via control panel
- Fully adjustable conveyor height and width to accommodate various bag sizes
- Optional vertical mount for gusseted and stand-up pouches
- Seals materials up to eight mil thickness
- High-speed operation sealing up to 30 bags per minute
- Metal printing wheel included (striped/date wheels optional)
Applications
Ideal for sealing plastic bags, aluminum foil bags, paper bags, and more. Perfect for retail packaging, industrial parts, food packaging, and various manufacturing applications.
Technical Specifications
Model: CSM-770PLUS
Power supply: 110V,220V-240V/50-60Hz 1P
Power consumption: 500W
Sealing speed: 0-12m/min
Sealing width: 6-15mm
Sealing film thickness: 0.02-0.08mm
Conveyor loading: 5kg
Machine size: 820*270*400mm
Machine Weight: 17kg
Product Gallery
