CSM-810 Continuous Band Sealer Expiry Date Coding Inkjet Coder
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | CSM-810 | Warranty | One-year Limited Hardware Warranty |
|---|---|---|---|
| Mobile Printing Capability | TIJ Printing | Print Head Unit | Support 1 Set Printing Unit |
| Treatment Width | 10mm | Ink Type | HP Solvent Ink/Quick-dry Ink |
| Voltage | 220V | Print Resolution | Up To 300*300 Optimized Dpi |
| Interface | EInternet Access/USB | Plate Type | TIJ 2.5 High Resolution Inkjet Printer |
| Print Speed | Up To 22 Pages Per Minute | Speed | 150m/min |
| Power Consumption | Up To 30 Watts (printing), Up To 5.8 Watts (ready), Up To 1.2 Watts (sleep) | ||
| Highlight | CSM-810 Continuous Band Sealer,Expiry Date Coding Continuous Band Sealer,Inkjet Coder Continuous Band Sealer |
||
Product Description
CSM-810 Continuous Band Sealer with Expiry Date Coding Inkjet Coder
Key Features
- Built-in high-resolution TIJ inkjet printer for coding/printing
- 5-inch touchscreen interface for easy operation
- Supports printing of QR codes, barcodes, expiration dates, and lot numbers
- Quick setup and operation for efficient production lines
- Multiple language support including English, Spanish, Chinese, and more
Technical Specifications
| Model | CSM-810 |
| Print Technology | TIJ 2.5 High Resolution Inkjet Printer |
| Print Resolution | Up to 300×300 optimized dpi |
| Print Speed | Up to 22 pages per minute |
| Sealing Speed | 0-30m/min (adjustable) |
| Sealing Width | 5-12mm (adjustable) |
| Power Consumption | 30W (printing), 5.8W (ready), 1.2W (sleep) |
| Voltage | 110/220V 50HZ-60HZ |
| Dimensions | 820×370×400mm (L×W×H) |
| Net Weight | 20kg |
| Warranty | One-year limited hardware warranty |
Product Description
The CSM-810 Continuous Band Sealer combines high-performance sealing with integrated inkjet coding capabilities. This all-in-one packaging solution features a built-in thermal inkjet (TIJ) printer that enables direct printing of essential information like expiration dates, lot numbers, barcodes, and QR codes onto sealed packages.
Designed for efficiency, the machine offers quick setup and operation with its intuitive 5-inch touchscreen interface. The printer supports multiple languages and allows for storage and recall of frequently used print designs. With adjustable sealing parameters and high-resolution printing, the CSM-810 is ideal for various packaging applications across multiple industries.
Compatible Materials
- Plastic bags and films
- Composite material bags
- PE bags and fresh-keeping bags
- Tea bags and shrink films
- Other heat-sealable packaging materials

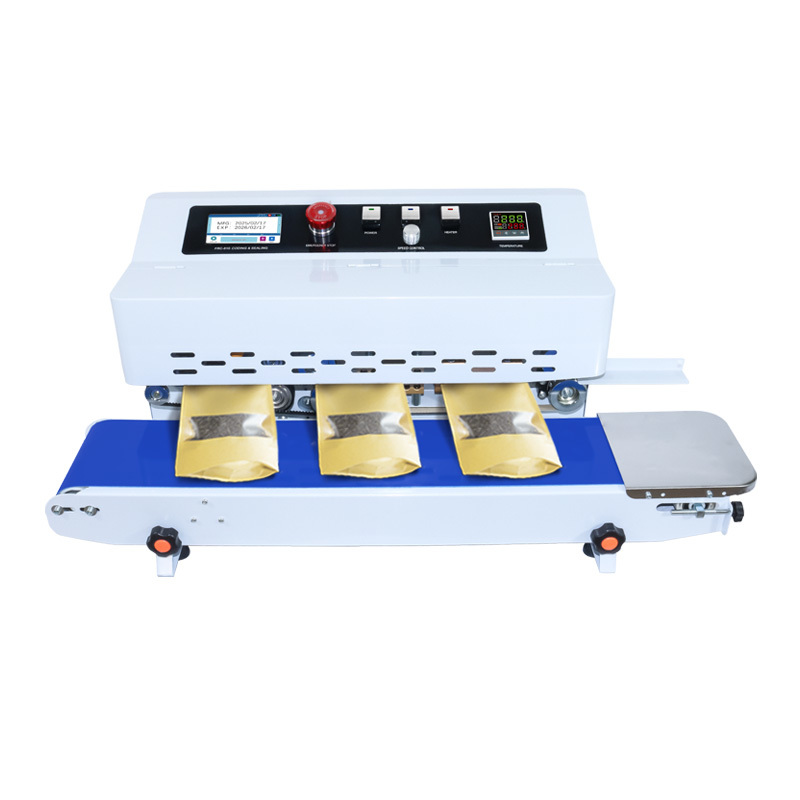

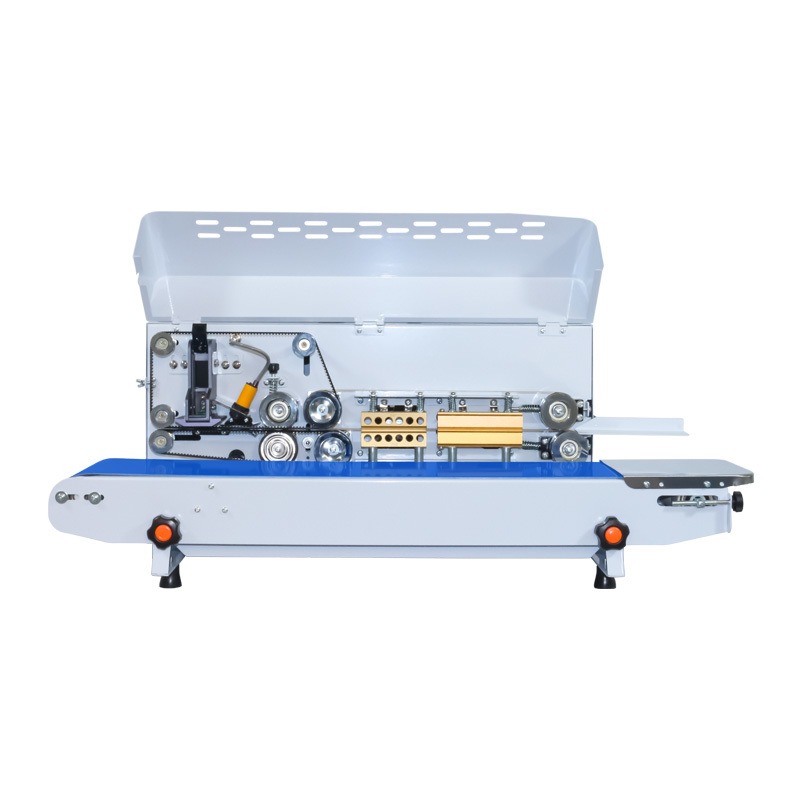

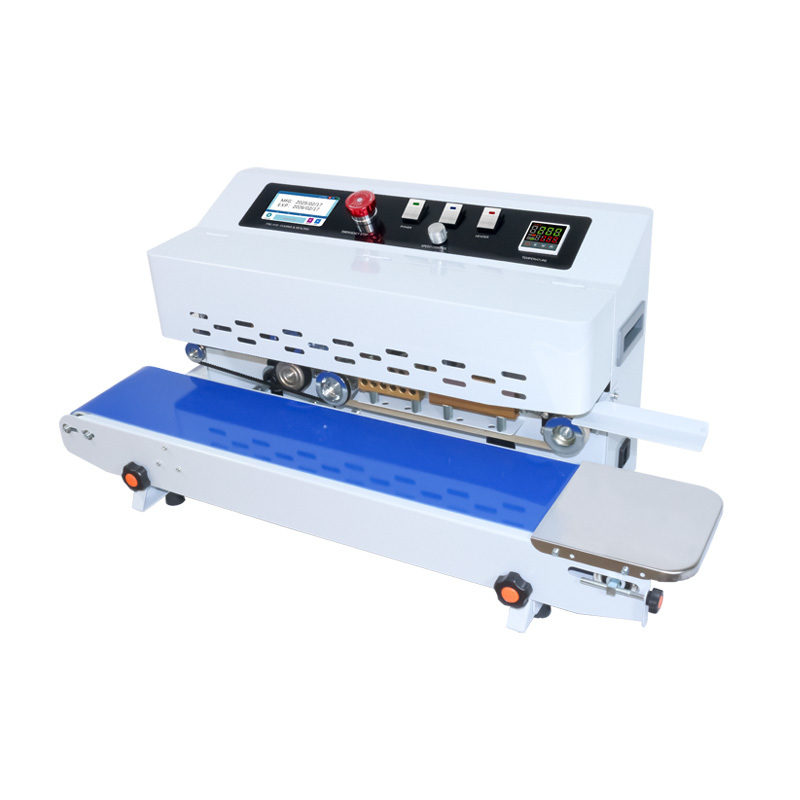

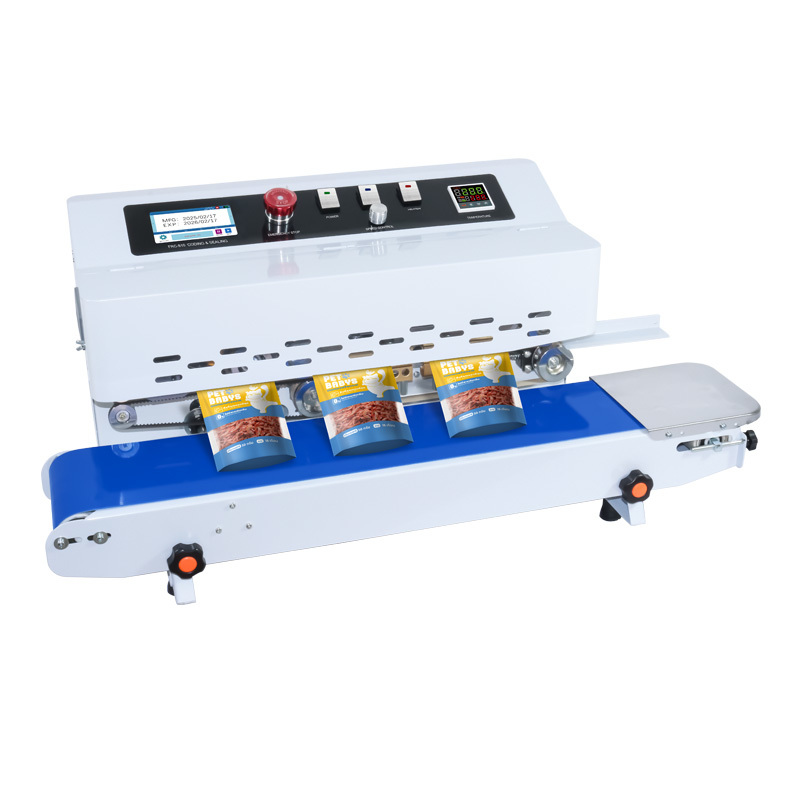

Product Gallery
