Fly Laser Marking Machine 220V 50HZ Coding Incredibly Versatile Different Configurations
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Wavelength | 9.30um/10.2um/10.6um | Marking Speed | ≤12000mm/s |
|---|---|---|---|
| Cooling System | Air Cooling | Laser Power | 30W/40W/60W |
| Production Line Speed | 0~130m/min (depending On The Material) | ||
| Highlight | 220V 50HZ Coding Fly Laser Marking Machine,Incredibly Versatile Fly Laser Marking Machine,Different Configurations Fly Laser Marking Machine |
||
Product Description
Fly Laser Marking Machine 220V 50HZ Coding Incredibly Versatile Different Configurations
Product Attributes
| Attribute | Value |
|---|---|
| Laser wavelength | 9.30um/10.2um/10.6um |
| Marking speed | ≤12000mm/s |
| Cooling system | Air cooling |
| Laser Power | 30W/40W/60W |
| Production line speed | 0~130m/min (depending on the material) |
Product Description

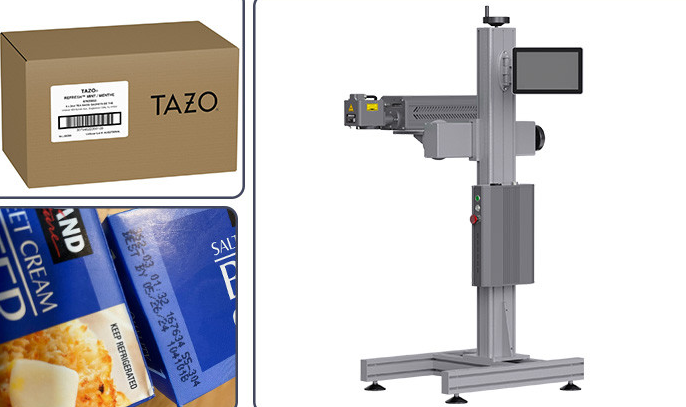

CO2 Laser Marker with coding and marking for master carton and glass bottle
These systems deliver high-precision marking across diverse materials—including opaque substrates like paper, wood, rubber, and ceramics, as well as transparent surfaces such as glass. Engineered for demanding production environments, COTAJET maintains crisp, legible codes on glass even at elevated line speeds through optimized parameter configurations.
The technology adapts to complex contours through text flipping, mirroring, and curvature functions, enabling coding on irregular shapes. With over 20,000 configurable settings, the platform economically meets diverse marking requirements. Its wide-web application capability supports large-area coding and simultaneous multi-line product marking operations.
| Project | Parameter | CO2-30W | CO2-40W | CO2-60W |
|---|---|---|---|---|
| Characteristic | Machine material | All aluminum sandblasting oxidation | ||
| Laser service life | More than 20000-30000 hours | |||
| Laser | Laser wavelength | 1060nm | ||
| Output power | ≥38W | ≥43W | ≥70W | |
| Marking speed | ≤12000mm/s | |||
| Controller | 10.2 inch touch controller | |||
| Cooling system | Air cooling | |||
| Parameter | Focus lens | 145mm | ||
| Minimum linewidth | 0.03mm | |||
| Repetition accuracy | 0.01mm | |||
| Marking range | 110mm*110mm(optional) | |||
| Number of rows | Any line within the marking range | |||
| Production line speed | 0~130m/min (depending on the material) | |||
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | ||
| Jurisdiction | Multi user management authority | |||
| Operating system | Linux system | |||
| Inkjet mode | Static, analog, encoder | |||
| Reserved signal | Start, print status, finish, fault | |||
| Data protection | With power failure data protection energy | |||
| Monitor | Provide overspeed alarm function | |||
| De crossing | Automatic removal of intersections | |||
| Coding software | Single and double machine code sending | |||
| Support type | Typeface | Chinese and English, numbers, traditional, etc | ||
| File format | BMP/DXF/HPGL/JPEG/PLT | |||
| Bar code | CODE39,CODE128,CODE126,QR | |||
| Servicing parameters | Power Supply | 220V/50HZ | ||
| Power consumption | 800W | |||
| Net weight of machine | 45kg | |||
| Overall dimension | nose:666mmX165mmX157mm | |||
| Environment requirement | External temperature 0℃－45℃; humidity ≤95% | |||
